Nanyang Jinguan Electric supplies full series of 10kV-1000kV composite insulators worldwide, using world's leading technology, silicone rubber sheds + epoxy core rod, lightweight high strength, pollution-resistant & seismic. IEC 61109 & GB/T 19519 compliant, exported to over 80 countries.
Nanyang Jinguan Electric Global Supply

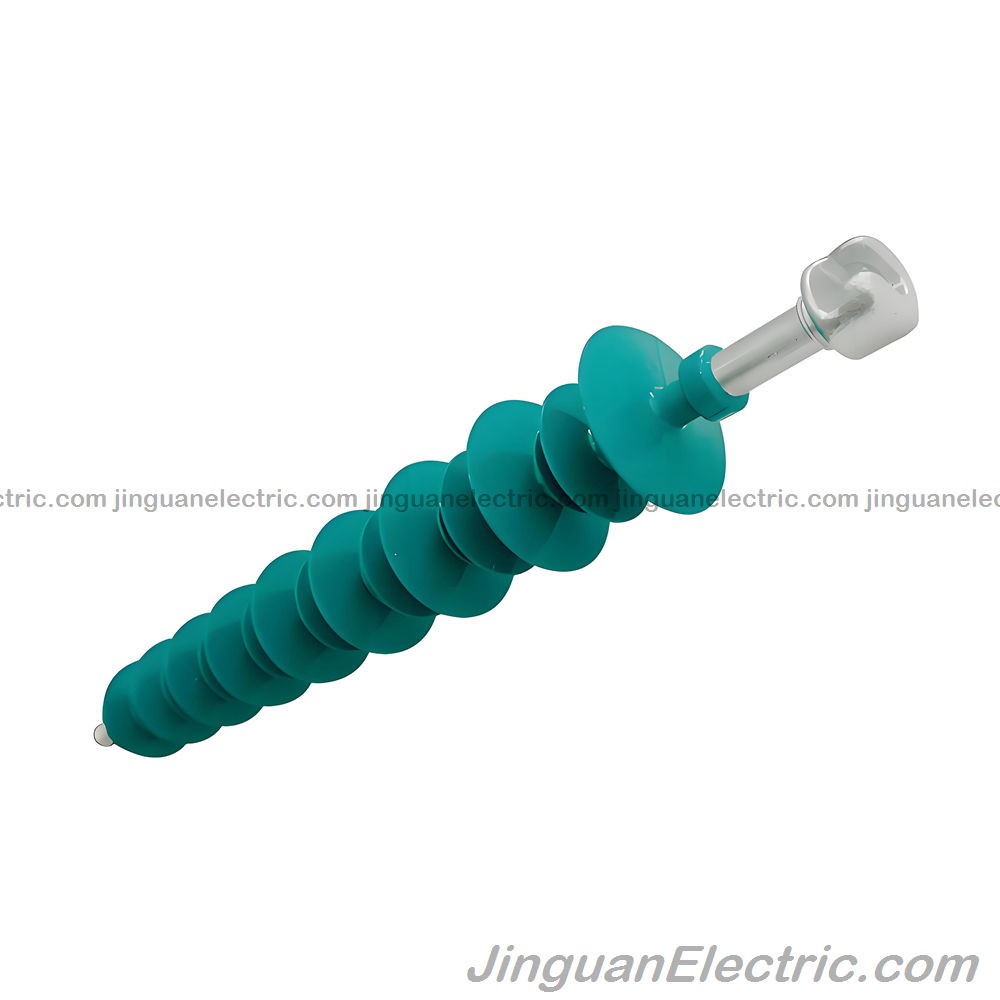

Nanyang Jinguan Electric Co., Ltd. specializes in supplying full series of composite insulators (10kV-1000kV) worldwide, using the world's leading composite insulator manufacturing technology. Independently developed full series with product performance and manufacturing capacity at international top-class level. Core structure is high-strength epoxy resin core rod + HTV silicone rubber sheds, featuring lightweight (1/3 weight of porcelain insulators), high mechanical strength, pollution-resistant, seismic & explosion-proof, maintenance-free. Widely used for high-voltage transmission lines, substations, and harsh environments.
| Type | Voltage Rating (kV) | Rated Mechanical Load (kN) | Structure Height (mm) | Creepage Distance (mm) | Dry Arcing Distance (mm) | Key Features |
|---|---|---|---|---|---|---|
| Suspension FXBW | 10–66 | 70–120 | 400–900 | 1600–3000 | ≥350–700 | Lightweight, pollution class IV |
| Suspension FXBW | 110–220 | 100–300 | 1200–2200 | 3900–6700 | 1000–1800 | High bending load, seismic resistant |
| Suspension FXBW | 330–500 | 300–550 | 3000–4500 | 10500–16000 | 2800–4000 | UHV grade, extra-long creepage |
| Suspension FXBW | 550–1000 | 550–840 | 4500–8000 | 20000–40000 | 4000–7000 | UHV level, super long life >30 years |
| Post FZSW | 35–252 | 8–16 | 600–2300 | 1800–7500 | 500–2100 | Horizontal/vertical mount, explosion-proof |
| Line Post FZS | 110–500 | 100–300 | 1500–4000 | 4500–15000 | 1300–3500 | Compact design for compact lines |
Other Parameters
Hydrophobicity: HC1-HC3 level Partial Discharge: <5pC Energy Absorption: >10kJ/kV Operating Temperature: -50°C to +85°C Fitting Type: Ball Eye-Socket
